APD14PE

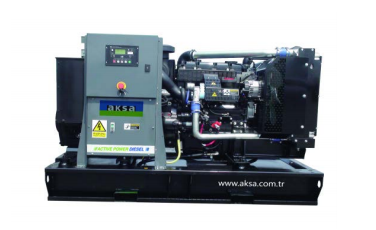

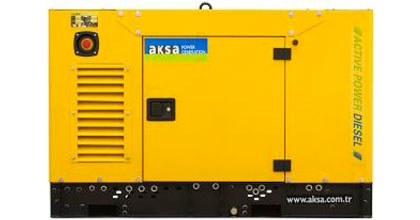

- Aksa APD14PE 3P Diesel Generator
- Powered by a Perkins 403A-15G 415V engine
- Rated 14kVA Standby / 12.5kVA Prime Power
| Title | Value |
|---|---|
| kVA Standby Range | 0-100 |
| kVA Standby | 14 |
| Fuel Type | Diesel |
| Phase | 3 Phase |
| Engine Make | Perkins |
| Engine Model | 403A-15G |
| Altenator | PI044F |
| kVA Prime | 12.5 |
| Voltage | 415V |
| Open Set Weight (kg) | 385 |
| Encl. Set Weight (kg) | 515 |
| Open Set Dimensions (LxWxH) | 1400 x 760 x 981 |
| Encl. Set Dimensions (LxWxH) | 1672 x 823 x 1127 |
| Open Set Fuel Tank (L) | 32 |
| Encl. Set Fuel Tank (L) | 32 |
Engine
- Heavy duty Perkins diesel engine
- Four stroke, water cooled, natural
- Direct injection fuel system
- Mechanical Governor system
- 12/24 V D.C. starter and charge alternator
- Replaceable fuel filter, oil filter and dry element air filter
- Cooling radiator and fan
- Starter battery (with lead acid) including Rack and Cables
- Flexible fuel connection hoses and manual oil sump drain valve
- Industrial capacity exhaust silencer and steel bellows
- Jacket water heater(at automatic models)
- Operation manuals and circuit diagram documents
Alternator
- Brushless, single bearing system, flexible disc, 4 poles
- Insulation class H
- Standard degree of protection IP21 (*IP22/IP23 is available.)
- Self-exciting and self-regulating
- Impregnation with tropicalised epoxy varnish
- Solid state Automatic Voltage Regulator
- Stator winding with 2/3 pitch for improved harmonics
